Bulldog Landing Gear and Leveling Jacks 2-Pack Bundle – Your Ultimate Lifting Solution!

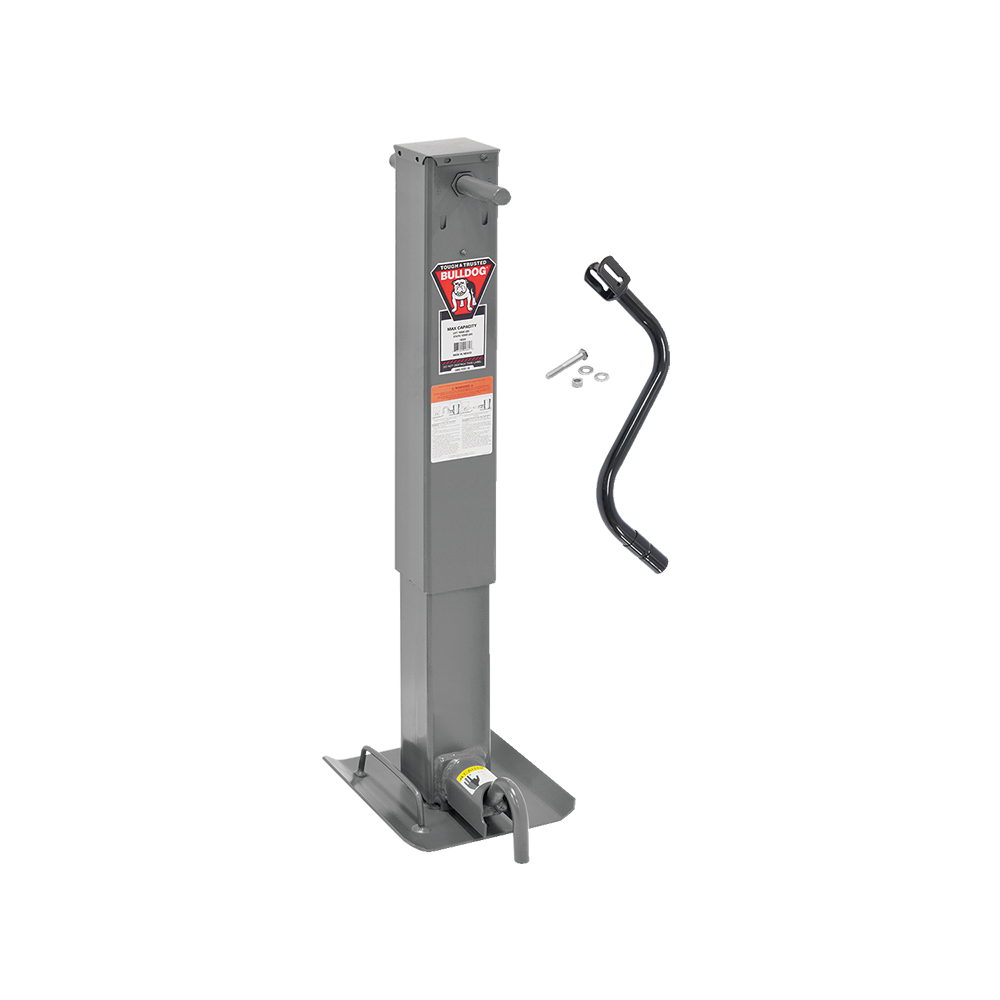

Introducing the Bulldog Landing Gear 2-Pack (182404 and 182411), featuring Non-Spring Return Drop Legs, paired with the Bulldog Electric Motor Powered-Drive Kit 2-Pack (1824200100). Designed for a wide range of trailers including gooseneck, car hauler, fifth-wheel, enclosed, utility, and horse trailers, this bundle enhances your trailer’s functionality with added convenience and a Manual Override Crank.
Please Note:Each jack comes with a separate motor, requiring individual switches for operation, although both motors can be connected to the same battery for convenience. It is not advised to wire both jacks to a single switch.
Key Features:
- Durable 4″ Square Tubing made from 7-gauge alloy steel.
- Corrosion-resistant paint on outer tubes and drop legs for extended longevity.
- Adjustable Drop Leg with five positioning holes for enhanced flexibility.
- Conveniently accessible gear boxes and grease fittings for easy maintenance.
- Non-Spring Return Drop Legs allowing for 12.5″ of screw travel and 13.5″ additional adjustment.
- Plunger Pins for both curbside and roadside, aligning with the handle side for convenience.
- Long-lasting powder coat finish for ultimate protection.
- Sidewind Model featuring a 1:1.5 gear ratio for efficient cranking.
Springless Drop Leg efficiency allows for effortless adjustment without manual lifting.
ASABE S485 Compliant:Bulldog products assure top-tier quality and reliability.
Technical Specifications:
- Bracket Height: 27-3/8″ retracted to 39-7/8″ extended.
- Total Lift of 26″ with a travel of 12-1/2″.
- Drop Legs offering 13-1/2″ of adjustment.
- 10,000 lbs Manual and 7,500 lbs Electric Lift Capacity per Jack.
- Static Capacity of 12,000 lbs per Jack, totaling 24,000 lbs.
- Dimensions: Outer Tube Width 4″, made from 7-gauge steel.
- 5-year warranty coverage.
Bulldog Electric Motor Powered-Drive Kit 2-Pack:
- Enhanced lifting efficiency compatible with Bulldog Single-Speed Landing Gears.
- Compact, quiet, and efficient design ideal for heavy-duty trailers.
- Maintenance-free with weatherproof components.
- Includes manual operation option for emergencies.
Motor Kit Specifications:
- 12 volt DC Motor Power with 7,500 lbs Electric Lift Capacity per motor.
- Designed for Bulldog Single-Speed Landing Gears.
- Dimensions: 16-1/2″ x 3-1/8″ x 7-3/16″.
- Limited 5-year warranty.
For a seamless upgrade to your trailer’s capabilities, consider the Bulldog Landing Gear and Leveling Jacks Bundle. Contact us at 877-869-6690 to order and take a step towards more efficient and effortless trailer operations. Invest today for superior performance and peace of mind.
