Description
This Bundle Fits The Following Vehicles:
2022-2024 Hyundai, Santa Cruz, All Styles
This Bundle Includes the Following Parts:
Trailer Hitch
Tekonsha BRAKE-EVN Brake Control
Plug & Play BC Adapter
7-Way RV Wiring
List of fitment years: 2022, 2023,2024
The hitch is hidden behind your bumper, and does not require drilling
Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Reese Towpower
REESE Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. REESE’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. REESE receiver hitches are rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 6,000 lbs. weight distribution (WD) and 750 lbs. weight distribution tongue weight (WDTW). REESE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Every REESE trailer hitch is inspected to ensure the highest quality and workmanship and is tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Hyundai Santa Cruz and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market – allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! REESE Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose REESE and travel with confidence knowing your setup is connected with the security only REESE can provide. REESE: Helping you enjoy the journey as much as the destination.
• CUSTOM DESIGNS: REESE Class III trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: REESE hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 5,000 lbs. GTW and up to 500 lbs. TW. Also suitable for use with Weight Distribution systems of up to 6,000 lbs. WD and 750 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This REESE Class III hitch is designed to fit the following make and model year vehicle(s): Hyundai Santa Cruz

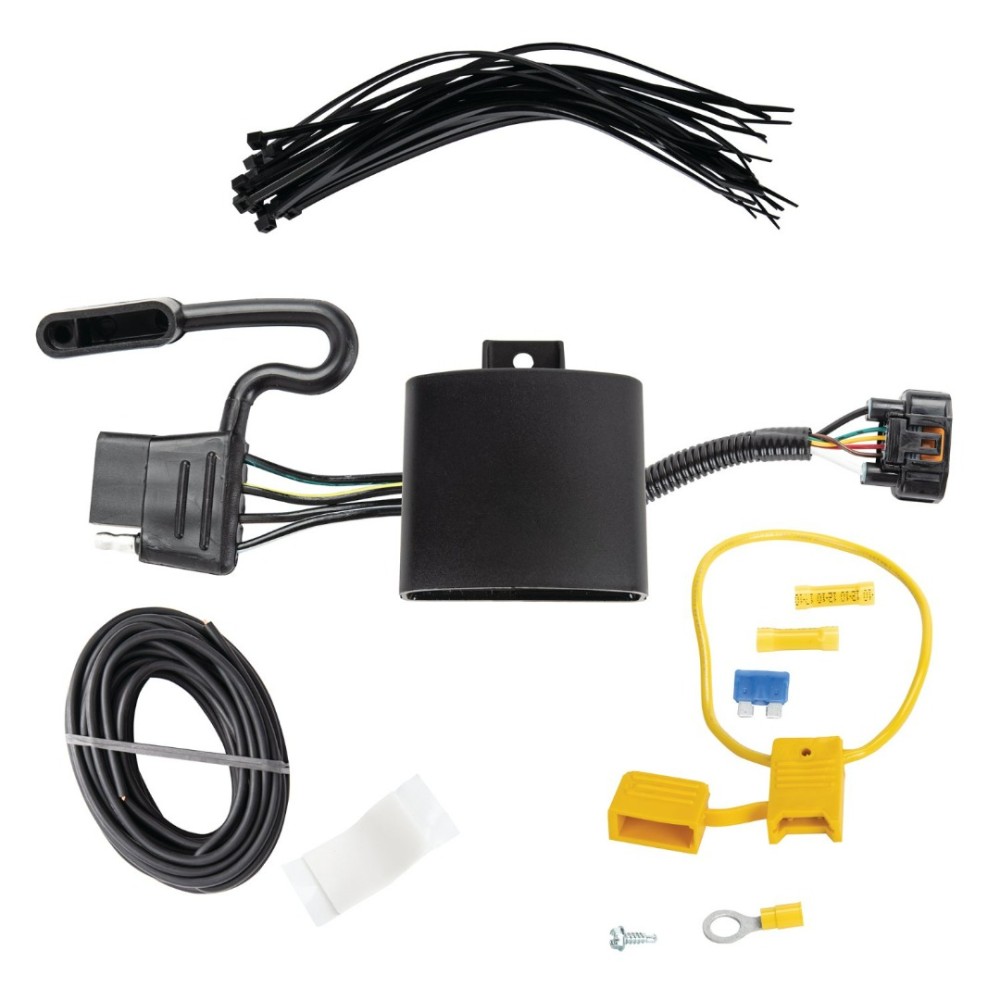

T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 5 Amps
• Taillight Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed
Wiring Adapter, 4-Way Flat to 7-Way, Round Car End Manufactured by: Reese Towpower
The REESE Towpower pre-wired round blade 7-way connector, provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.
• Provide versatility in going from 4-Flat to 7-Way standard plug
• Per-wired with 4-Flat and wired with butt connects and ring terminal
• Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal
• Features non-corroding brass terminals
• Mounts to standard 7-Way bracket
• Non-corrosive thermo plastic construction
• Ring terminal already mounted to ground wire
• 12 volt and brake wires have butt connectors already attached
Trailer Brake Controller Installation Kit, Wire and Hardware Manufactured by: Tekonsha
This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.
• OEM Style wiring harness
• Easy to install
• 1-3 axles
Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging
BRAKE-EVN™ Proportional Brake Controller for Trailers with 1-4 Axles, Black Manufactured by: Tekonsha
The Tekonsha BRAKE-EVN brake controller offers advanced proportional braking by applying brake pressure to match the vehicles deceleration rate. Proportional braking gets you get smoother stops that traditional time based controls. The boost feature gives the ability to apply more initial braking at the onset of stopping when towing heavier loads. When adjusted properly for your load, proportional brake controls can even extend the life of your vehicles brakes. The large LED display is easy to see when adjusting the control to handle the weight of your loaded or unloaded trailer. The BRAKE-EVN brake control can handle up to brake 4 axles and offers a simple plug in installation option, so be sure to get the proper factory harness for your vehicle. The perfect choice for light or heavy trailer loads.
• 1-4 Axle capacity
• Boost feature gives ability to apply more initial trailer braking
• Reverse battery protection
• No leveling required
• Diagnostics features incorporated in easy to read LED display
• Plug & Play feature allows for quick and easy connections
• Small compact design designed for todays dashes
• Simple push button adjustments
Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha
Towing and trailering requires a lot of equipment, and sometimes that equipment requires adapters to make it fit just right. Thankfully, Tekonsha® has a complete line of adapters – or harnesses – to fit whatever brake controller you may choose. These Plug & Play adapters are designed with a plug-in installation on both ends, making it simple to install a brake controller into a factory under-dash connector. And considering that many of the vehicles today are pre-wired with a brake controller connector under the dash, selecting a Tekonsha Plug & Play adapter makes wiring easy and trouble free.There’s no cutting or splicing needed! Just select the custom two-plug adapter to fit your vehicle, then plug the Tekonsha Plug & Play adapter into your vehicle’s under-dash connector and the other end into your brake controller. In no time, you’ll be on the road. Life’s a Journey. Stop Often.
• Provides Plug and Play connector to mate with all HZN brake controllers
• Features a factory connector on one end and a brake control connector on the other
• Eliminates the need for cutting or splicing of wires
• Positive locking connector stays connected when plug in tightly
• Reduces possible short circuits
