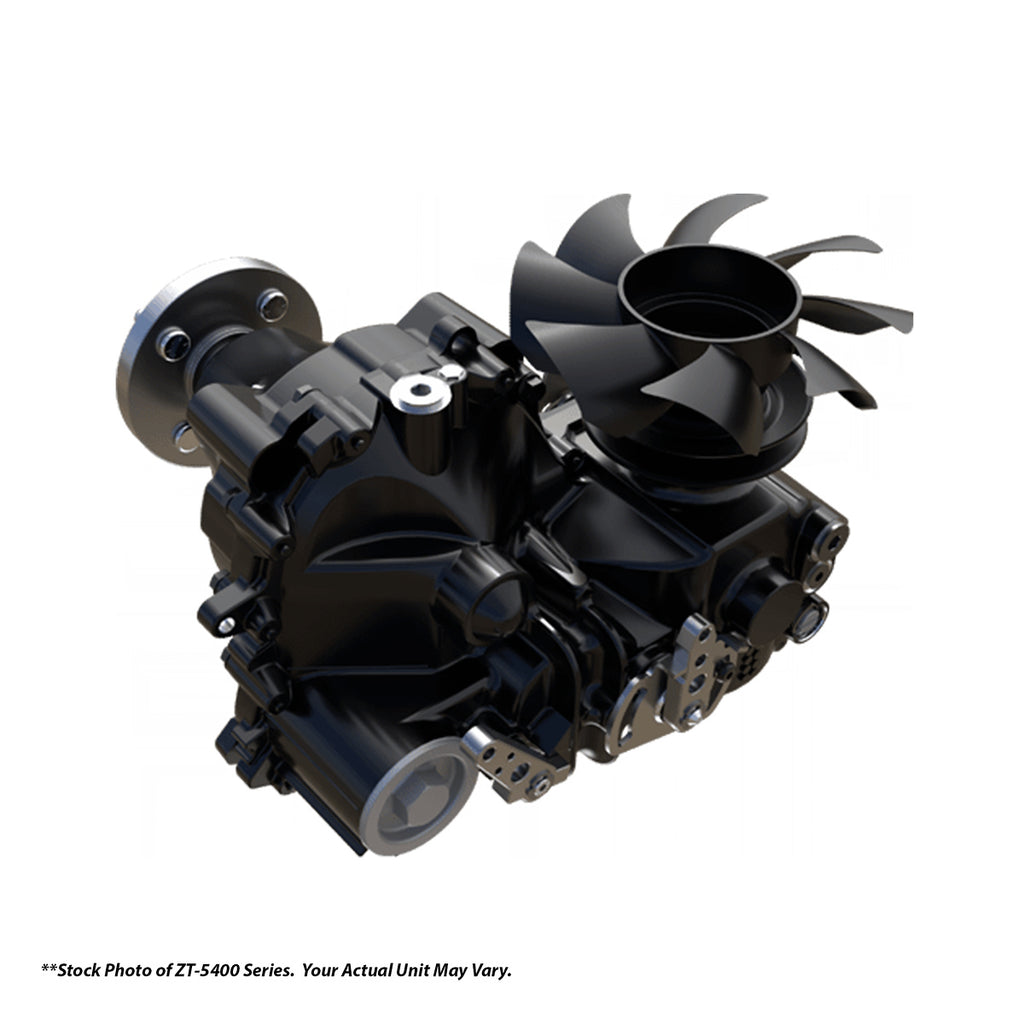

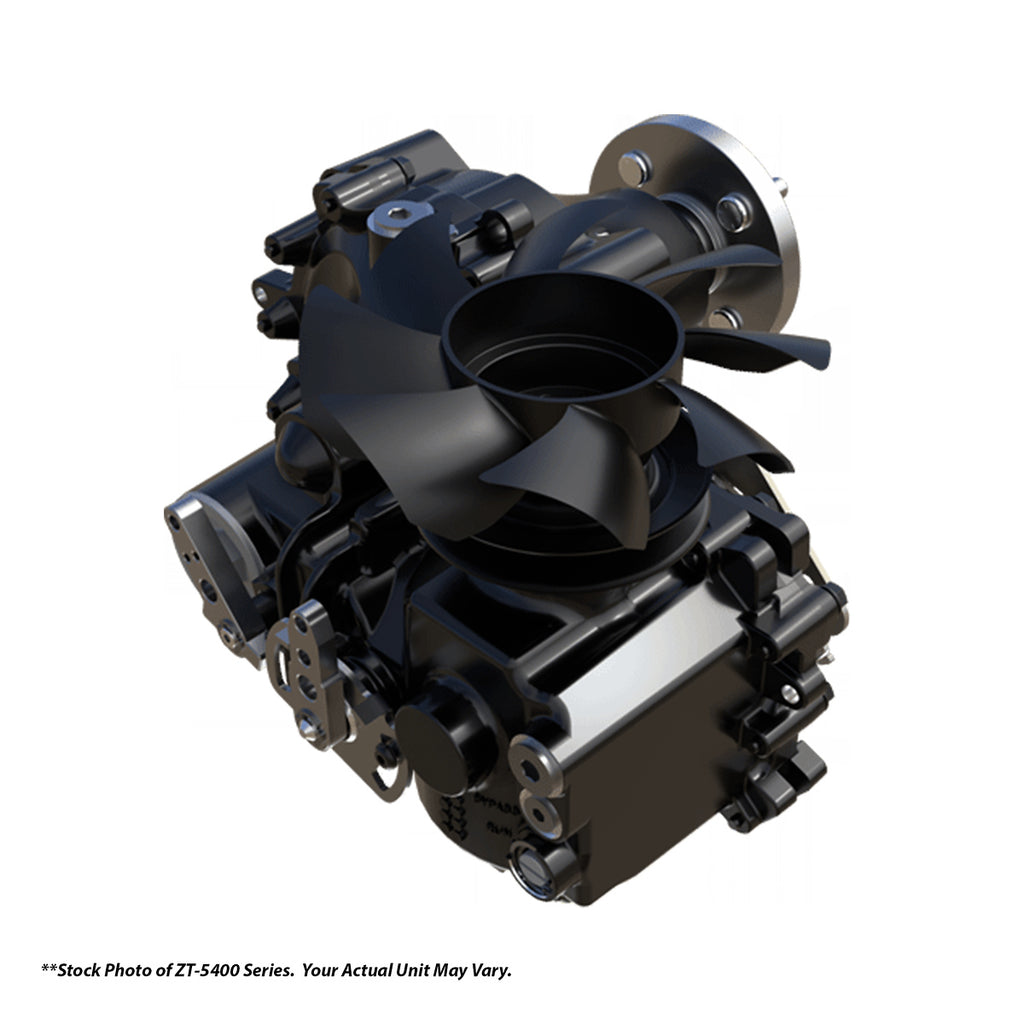

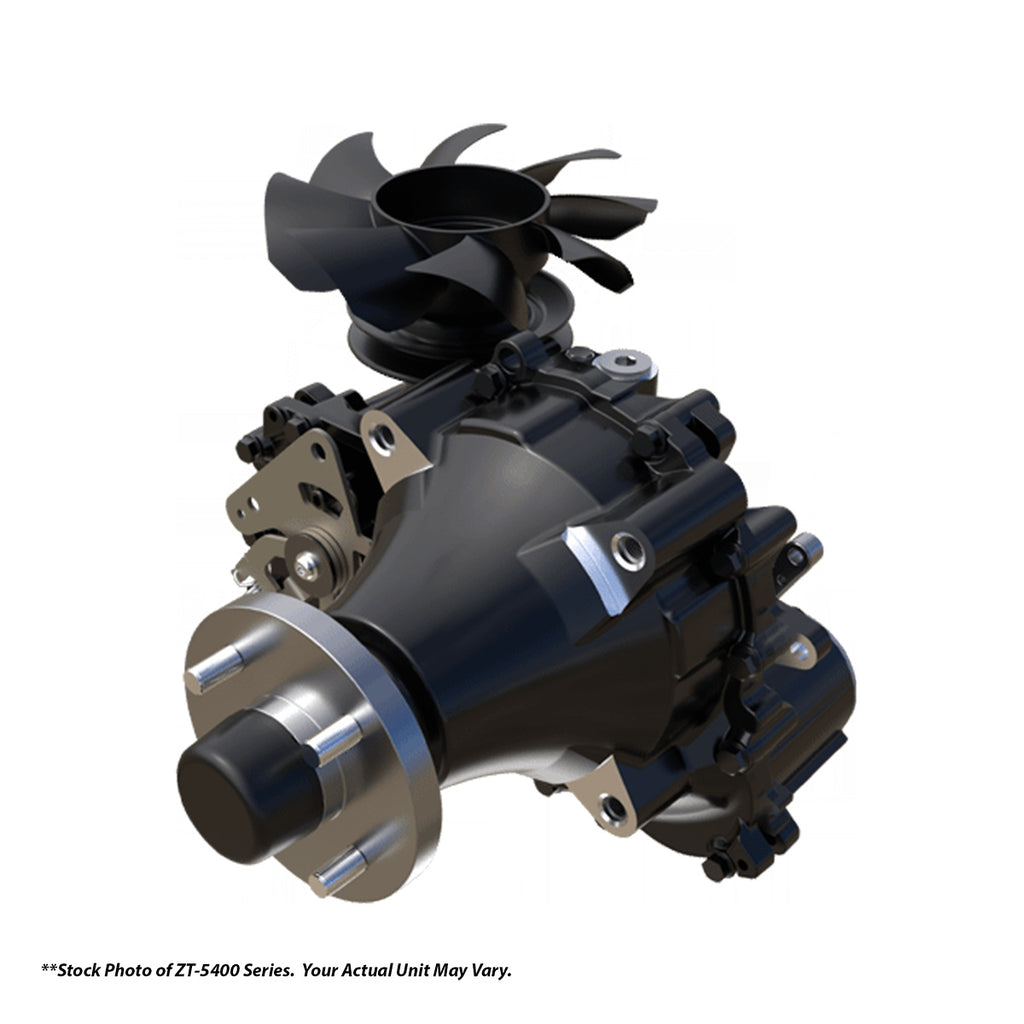

ZT-5400 Powertrain®
LARGEST TRANSAXLE – HANDLES THE BIGGEST & TOUGHEST JOBS.
For serious jobs, drive it with Hydro-Gear’s largest, fastest, and most powerful unit – the ZT-5400 Powertrain®. This beast features heavy-duty roller bearings, a high-capacity thrust bearing for extended life, a high-efficiency 16cc pump, a 21cc motor, and an industry-leading 1-3/8” axle shaft. Also comes with a standard performance package and optional transport mode for increased speed between jobs.
- Standard performance package
- Reliable and quiet performance each and every time
- Heavy-duty 1-3/8″ axle for machines weighing up to 2200 lbs
- Optional transport mode for increased speed
- Our largest and most durable integrated unit with a high efficiency 16cc pump & 21cc motor
SPECIFICATIONS
LOW SPEED OVERALL REDUCTION – 18.6:1
HIGH SPEED OVERALL REDUCTION – 12.9:1
PUMP DISPLACEMENT – 0.97 in3 /rev [16 cc/rev]
MOTOR DISPLACEMENT – 1.33 in3 /rev [21.8 cc/rev]
INPUT SPEEDS
- MAX HI-IDLE (NO LOAD) – 3600 rpm
- MIN (LOADED) – 1800 rpm
OUTPUT TORQUE – up to 700 lb-ft [up to 949 Nm]
SPEED – up to 18 mph [up to 29 kph]
GROSS VEHICLE WEIGHT – up to 2200 lbs [997 kg]
AXLE SHAFT DIAMETER – 1.375 in [34.925 mm]
AXLE SHAFT END OPTIONS
- Tapered
- 4-bolt Flange
- 5-bolt Flange
WEIGHT OF UNIT – 57 lbs [25.85 kg]
