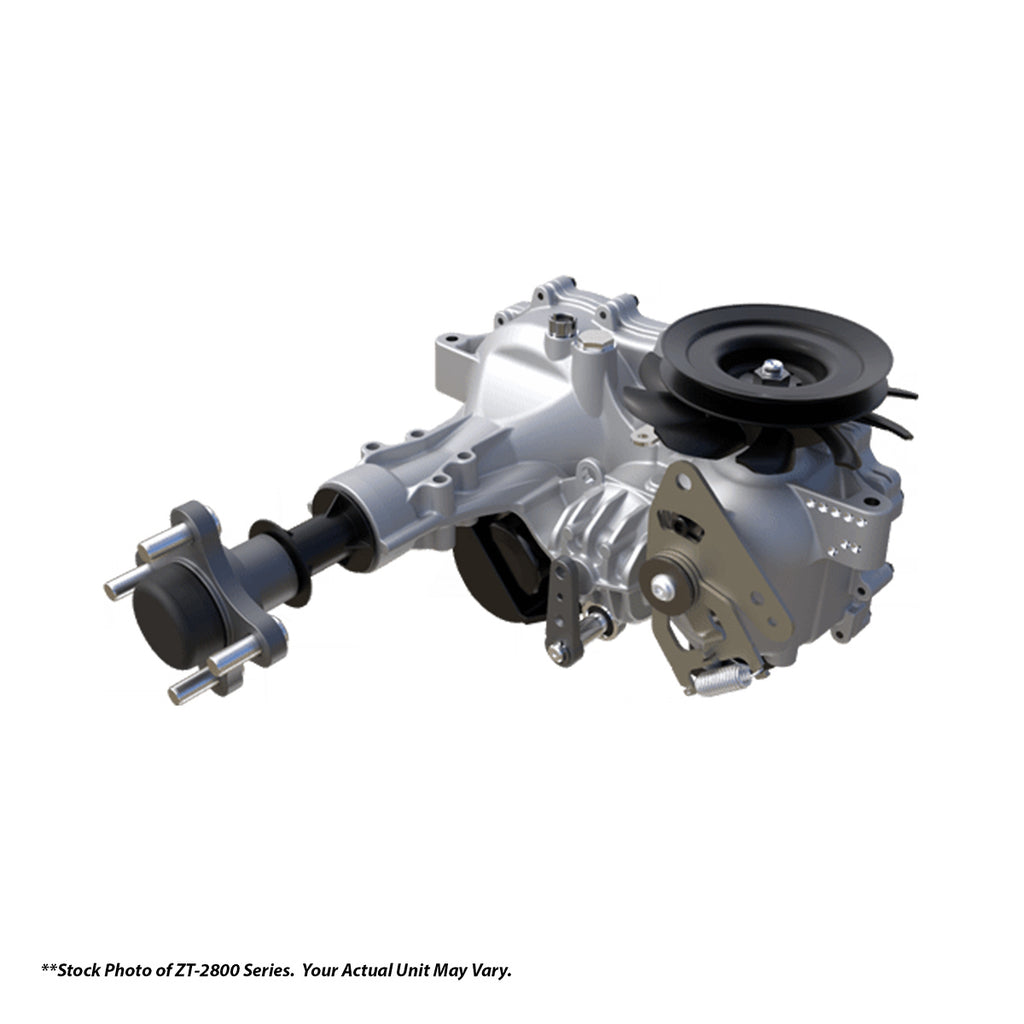

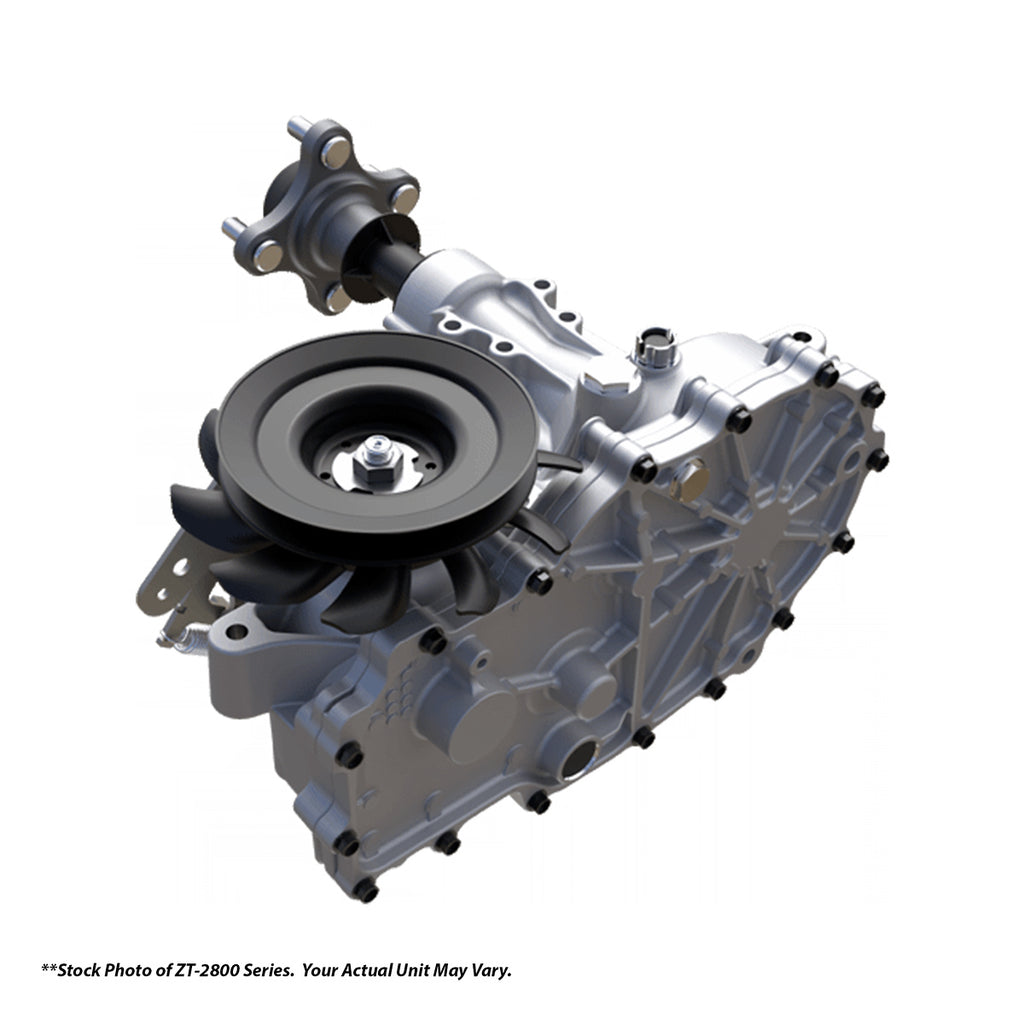

ZT-2800®
THE ESTATE-GRADE TRANSAXLE.
It’s the largest and most rugged residential transaxle we make, tackle the toughest properties with a high-efficiency 16cc motor and 10cc pump, and a standard debris-free internal brake. The efficient, serviceable design means longer life. For even greater performance, add the optional shock valves and charge pump.
- Our most rugged residential transaxle for machines up to 1000lbs
- Optional shock valves and charge pump for greater performance
- External oil filter for easy maintenance
- Optional internal expansion tank for easier installation
- Serviceable design for longer life
- Debris-free internal brake or external friction brake option
SPECIFICATIONS
TRANSMISSION MODEL
ZH/ZJ
ZK/ZL
ZM
OVERALL TRANSAXLE REDUCTION
TRANSMISSION MODEL
- ZH/ZJ – 20.69:1
- ZK/ZL – 24.74:1
- ZM – 27.23:1
PUMP DISPLACEMENT
- 61 in3 /rev [10 cc/rev]
MOTOR DISPLACEMENT
- 97 in3 /rev [16 cc/rev]
INPUT SPEEDS
- MAX HI-IDLE (NO LOAD) – 3000 rpm
- MIN (LOADED) – 1800 rpm
OUTPUT TORQUE
- up to 300 lb-ft [up to 406 Nm]
SPEED
- up to 8 mph [up to 12 kph]
GROSS VEHICLE WEIGHT
- up to 1000 lbs [up to 453 kg]
AXLE SHAFT DIAMETER
- in [25.4 mm]
AXLE SHAFT END OPTIONS
- Tapered
- 4-bolt Flange
- 5-bolt Flange
WEIGHT OF UNIT
- 32 lbs [14.5 kg]
