Description

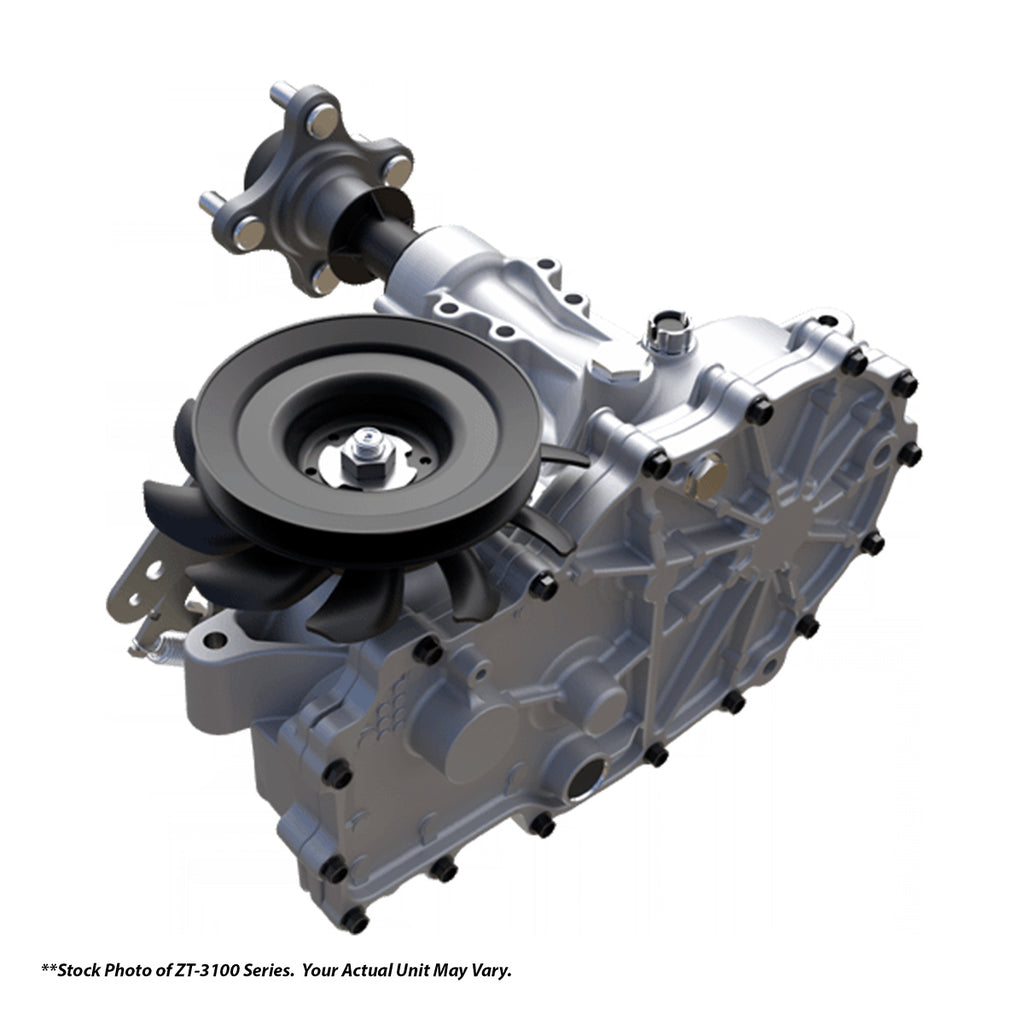

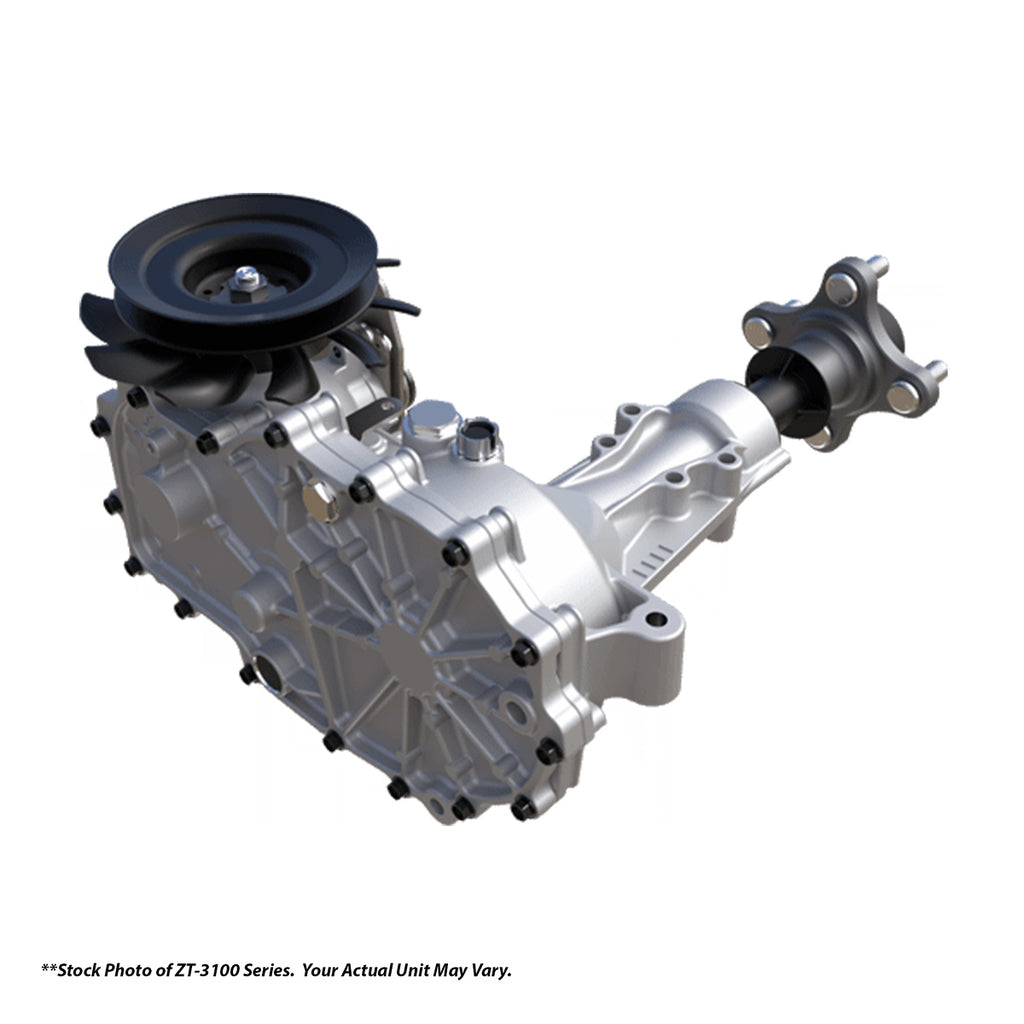

ZT-3100®
OUR ENTRY-LEVEL COMMERCIAL-GRADE TRANSAXLE.
Hydro-Gear’s entry-level commercial transaxle is designed to give you reliable and quiet performance every time you turn the key. The ZT-3100® features a high-efficiency 10cc pump and 16cc motor, 1” axle shaft, and external oil filter for fast, easy maintenance. The Performance Package takes it up another notch with shock valves to extend system life, durable cut steel gears, and a charge pump.
- Included shock valves to protect the systemand extend its life
- External oil filter for easy maintenance
- Optional internal expansion tank for easier installation
- Performance package – Shock valves, Cut steel gears, and Charge pump
SPECIFICATIONS
OVERALL TRANSAXLE REDUCTION
- TRANSMISSION MODEL ZJ – 20.69:1
- TRANSMISSION MODEL ZL – 24.74:1
- TRANSMISSION MODEL ZM – 27.23:1
PUMP DISPLACEMENT
- 61 in3 /rev [10 cc/rev]
MOTOR DISPLACEMENT
- 97 in3 /rev [16 cc/rev]
INPUT SPEEDS
- MAX HI-IDLE (NO LOAD) – 3600 rpm
- MIN (LOADED) – 1800 rpm
OUTPUT TORQUE
