Description

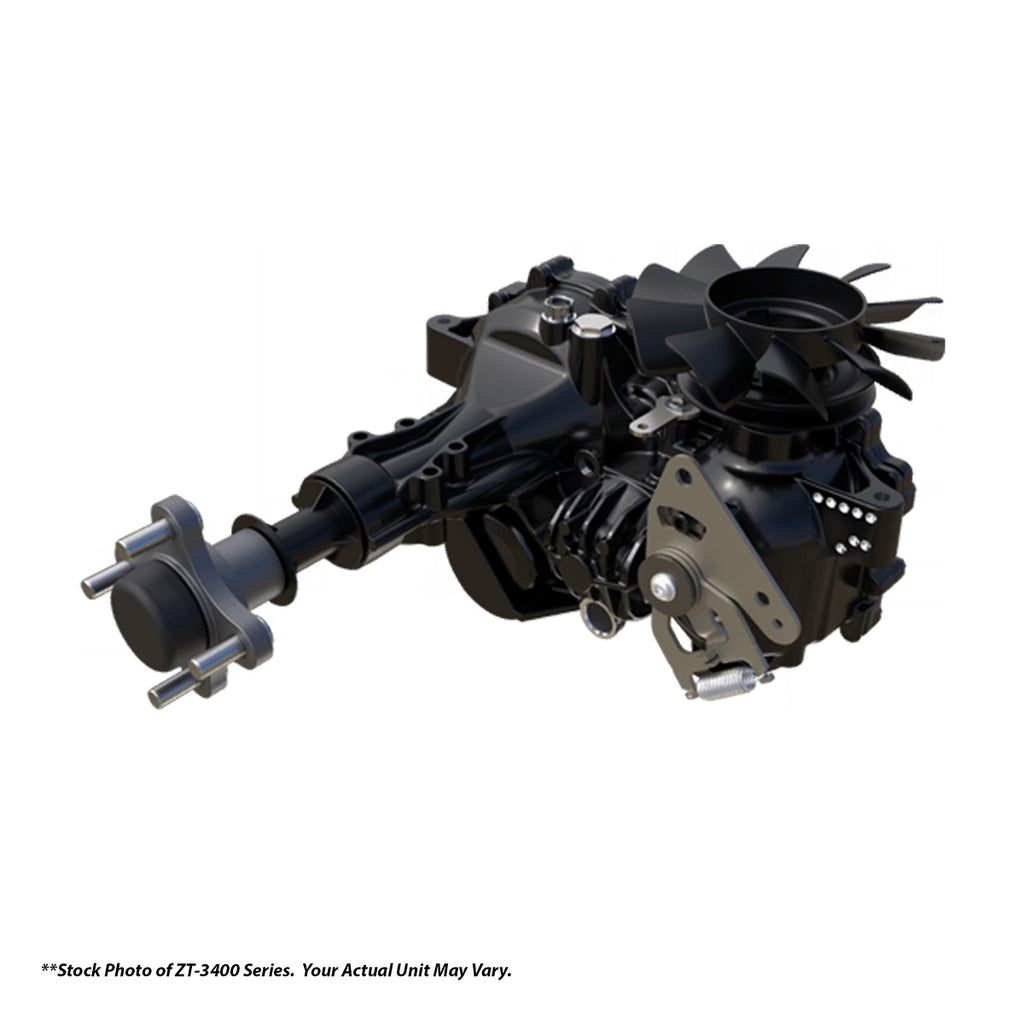

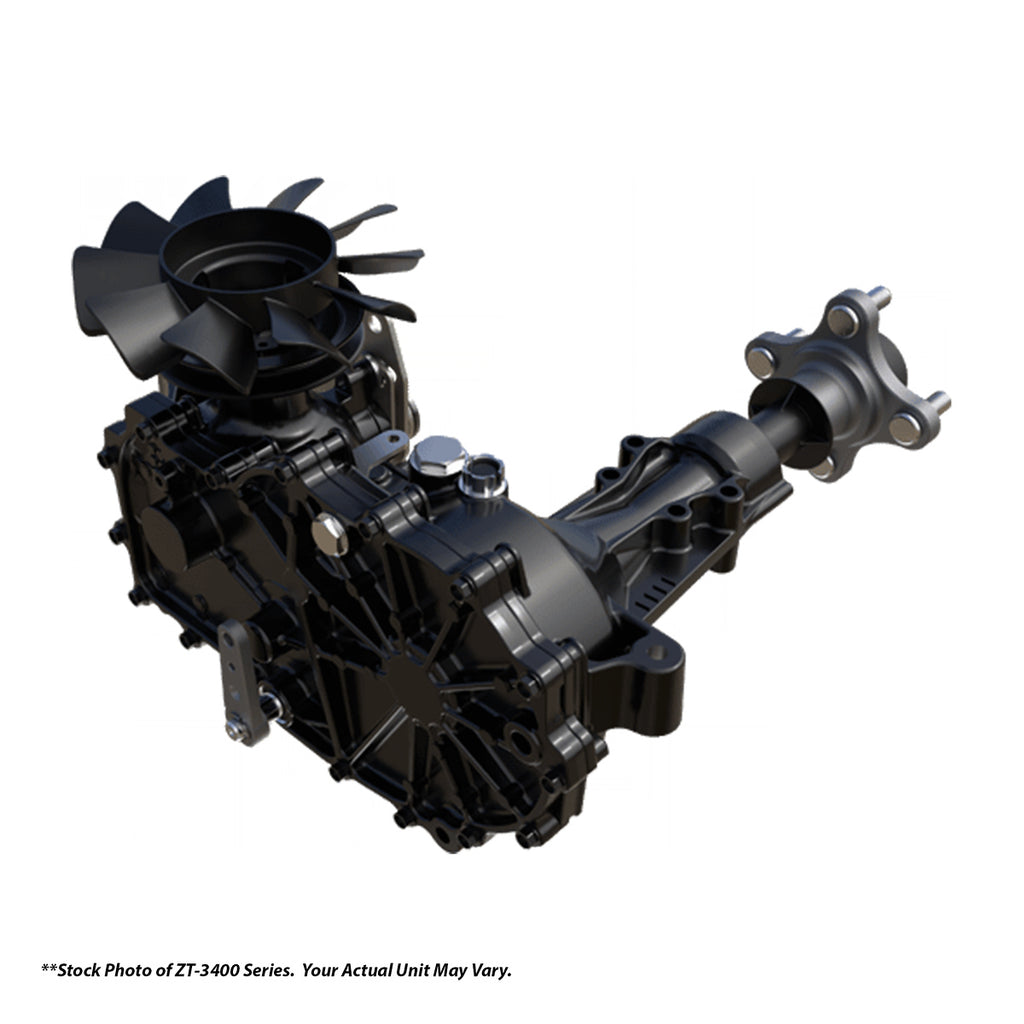

ZT-3400®
DESIGNED FOR MID-SIZE COMMERCIAL VEHICLES.
ZT-3400® is a mid-sized commercial transmission that performs truck-like work yet delivers unmatched maneuverability in tight spaces. It starts with a strong, high-efficiency 12cc pump, 16cc motor, and sturdy 1-1/8” axle shaft for heavier loads. The Performance Package then adds shock valves to extend system life, durable cut steel gears, and a charge pump.
- Designed for mid-size commercial vehicles
- Unmatched maneuverability in tight spaces
- Performance package – Shock valves, Cut steel gears, and Charge pump
- Durable 1-1/8″ axle for heavier loads
- High-efficiency 12cc pump & 16cc motor
- Reliable and quiet performance each and every time
- Optional internal expansion tank for easier installation
SPECIFICATIONS
OVERALL TRANSAXLE REDUCTION
- TRANSMISSION MODEL ZS – 21.04:1
- TRANSMISSION MODEL ZU – 23.16:1
- TRANSMISSION MODEL ZY – 21.09:1
PUMP DISPLACEMENT
- 73 in3 /rev [12 cc/rev]
MOTOR DISPLACEMENT
- 97 in3 /rev [16 cc/rev]
INPUT SPEEDS
- MAX HI-IDLE (NO LOAD) – 3600 rpm
- MIN (LOADED) – 1800 rpm
OUTPUT TORQUE
- up to 500 lb-ft [up to 677 Nm]
SPEED
- up to 10 mph [up to 16 kph]
GROSS VEHICLE WEIGHT
- up to 1600 lbs [up to 725 kg]
AXLE SHAFT DIAMETER
- 125 in [28.56 mm]
AXLE SHAFT END OPTIONS
- Tapered
- 4-bolt Flange
- 5-bolt Flange
WEIGHT OF UNIT
- 5 lbs [15.6 kg]
